Producing high-quality fish feed requires the right combination of raw materials, processing technology, moisture control, and temperature management. A Twin Screw Fish Feed Extruder Machine is an effective solution for feed manufacturers looking to produce uniform, nutritionally balanced extruded pellets for different aquaculture applications. Designed for controlled material processing, twin screw extrusion technology helps manufacturers manage feed texture, pellet expansion, density, and shape according to their production requirements.
SN Engineering offers fish feed processing machinery solutions for businesses planning to establish new feed manufacturing facilities or improve their existing production operations. With the right machine configuration, manufacturers can develop a production process suited to their target fish species, feed formulations, and required output capacity.

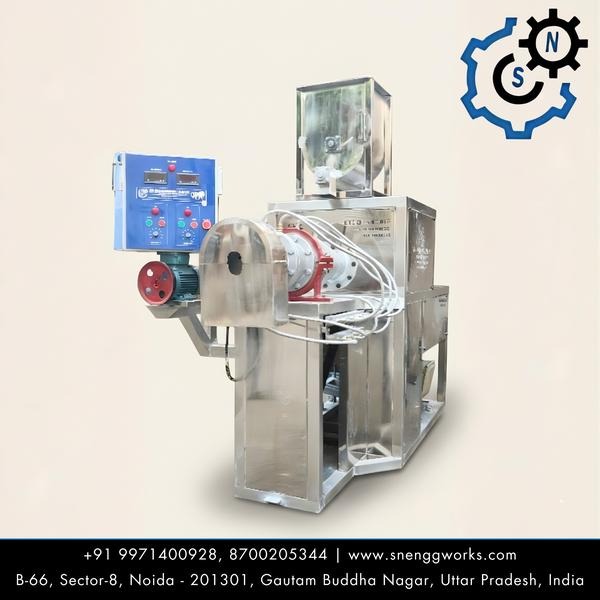

What Is a Twin Screw Fish Feed Extruder Machine?
A twin screw fish feed extruder machine uses two rotating screws inside a heated processing barrel to mix, convey, compress, and process feed ingredients. Under controlled temperature, moisture, pressure, and mechanical energy, the ingredients undergo extrusion and pass through a die to form pellets of the required size and shape.
Compared with simpler extrusion systems, twin screw technology can offer greater flexibility when processing different formulations and ingredients. Its performance depends on screw configuration, raw material characteristics, operating parameters, die design, and machine specifications.
Key Benefits of Twin Screw Extrusion Technology
Consistent Fish Feed Pellet Quality
Uniform processing helps manufacturers achieve consistent pellet shapes and sizes. Appropriate control of extrusion parameters can also support the desired pellet expansion, texture, and water stability for different feed applications.
Flexible Feed Formulations
Twin screw extrusion can accommodate a range of suitable feed ingredients and formulations. This flexibility helps manufacturers develop feed products for different aquaculture requirements, subject to the machine configuration and formulation characteristics.
Floating and Sinking Feed Production
With suitable formulations, processing conditions, and downstream equipment, an extrusion system can be configured for floating or sinking fish feed. Pellet buoyancy depends on factors such as starch gelatinization, expansion, density, moisture, and subsequent processing.
Improved Processing Control
Adjustable operating conditions allow manufacturers to fine-tune material processing according to the feed recipe and desired pellet characteristics. Consistent monitoring of temperature, moisture, and feed flow is important for maintaining production quality.
Suitable for Commercial Feed Manufacturing
Twin screw extruders can be incorporated into commercial fish feed production lines. Depending on the selected configuration, the system may operate alongside grinding, mixing, drying, coating, cooling, and packing equipment.
Applications of Twin Screw Fish Feed Extruder Machines
Twin screw extrusion technology can be used in the production of feed for several aquaculture applications, depending on the formulation and machine setup.
Commercial fish farms: Production of formulated feed for farmed fish requiring consistent pellet dimensions and suitable nutritional composition.
Catfish feed manufacturing: Processing of formulated feed for catfish farming, with pellet characteristics selected according to the species and feeding requirements.
Tilapia feed production: Manufacturing of extruded feed pellets designed for the nutritional and physical requirements of tilapia.
Aquaculture feed mills: Integration into larger feed manufacturing facilities producing multiple feed formulations or pellet sizes.
Specialized aquatic feed: Processing of selected formulations for other aquatic species where the equipment configuration supports the required product specifications.
Main Components of a Twin Screw Fish Feed Extruder
A typical machine incorporates a feeding system, twin screw assembly, processing barrel, drive and transmission system, temperature control arrangements, die assembly, and cutting mechanism. Each component contributes to the movement, processing, shaping, and cutting of the feed material.
The feeder regulates the supply of prepared ingredients, while the screws transport and process the mixture through the barrel. The die determines the pellet’s basic shape and diameter, and the cutting system controls pellet length. Additional equipment may be required to achieve the finished product’s moisture level, coating requirements, and storage stability.
How to Choose the Right Twin Screw Fish Feed Extruder Machine
Selecting the appropriate extruder begins with defining the expected production capacity and the types of fish feed you intend to manufacture. Buyers should consider hourly output requirements, raw mater
